Series of Poseidon B13S-Th apparatus with heating, 140 – 240 bar, 12/13/15 hp, 20 – 30 l/min
Manufacturer:ZET-TECHNO (Russia)
Application:
Poseidon waterjet equipment is a state-of-art and affordable solution of for a number of cleaning tasks. Due to the use of innovative Warthog slow rotating nozzles, you are able to clean even the most heavily contaminated sewers.
Wide scope of application in all areas of industry, agriculture, housing and utilities, construction, and car servicing:
Waterjet flushing and cleaning of sewers and other pipes
Washing and waterjet cleaning of all types of surfaces, including surface preparation for coating application
Car washing (carriages, light- and heavy-duty vehicles, agriculture and construction machinery)
Cleaning and sanitization of floors, surfaces and equipment in food manufacturing enterprises (meat, dairy, pastry plants)
Washing surfaces in livestock farms, poultry yards, pig farms
Cleaning garbage chutes in buildings
Washing and removal of plasterwork and painting from building face, rehabilitation of facing slabs
Wash works at construction sites, cleaning of construction framework
Cleaning roads, bridges, tunnels, old coating, insulation and congealed concrete solution
Three ceramic plungers, with head made of nickel-plated brass, Annovi Reverberi (Italy)
High pressure pump protection
Pump dry run protection
HP pump drive type
Gearbox
Engine
4-stroke air-cooled gasoline engine Honda GX390.
Power – 13 hp (9.5 kW).
Fitted with oil pressure drop protection.
Fuel consumption - 3 l/h.
4-stroke air-cooled gasoline engine Yamaha MX400.
Power – 12.8 hp (9.4 kW).
Fitted with oil pressure drop protection.
Fuel consumption - 3 l/h.
4-stroke air-cooled gasoline engine Lifan 190.
Power – 15 hp (11 kW).
Fitted with oil pressure drop protection.
Fuel consumption - 3 l/h.
Fuel tank
6.5 l (6.1 l with engines Yamaha MX400)
Climatic design
System of filling pump and HP main line with antifreeze to protect against freezing in cold weather
High pressure hose
90 meters long, DN10 mm
Reel for HP hose
Stationary, with manual drive.
Upon request, fitted with
square roller guide for hose (С2 option).
Water tank volume
200 , 300 l, 500 l, 800 l, 1,000 l
With drain gauge (auto stop, pump dry run protection).
Tank filling system features a mud filter and a float valve to monitor filling process.
Tanks with customized sizes and volumes can be supplied.
Suction hose
25 meters long, DN19 mm
Reel for suction hose
Stationary, hand-driven, accommodates hose up to 50 meters long and DN 19 mm
Design
Frame to be mounted, with power unit on shock mounts
Water heating
Integrated module with a boiler of max. 105 kW, 90,000 kcal/h
Nozzles are included (in "Reel" delivery set)
Two enhanced ZET-TECHNO nozzles made of surgical steel 40X13 with a rear jet pattern of 30˚ (optimal angle for this flow), with or no front jet
Power unit weight
145 kg (without water tank)
Power unit dimensions, WхDхH
981 х 676 х 868 mm
Warranty
2 years. For engines Honda, Briggs&Stratton – 3 years
* - can be used together with water boiler module, for washing with hot water.
Description:

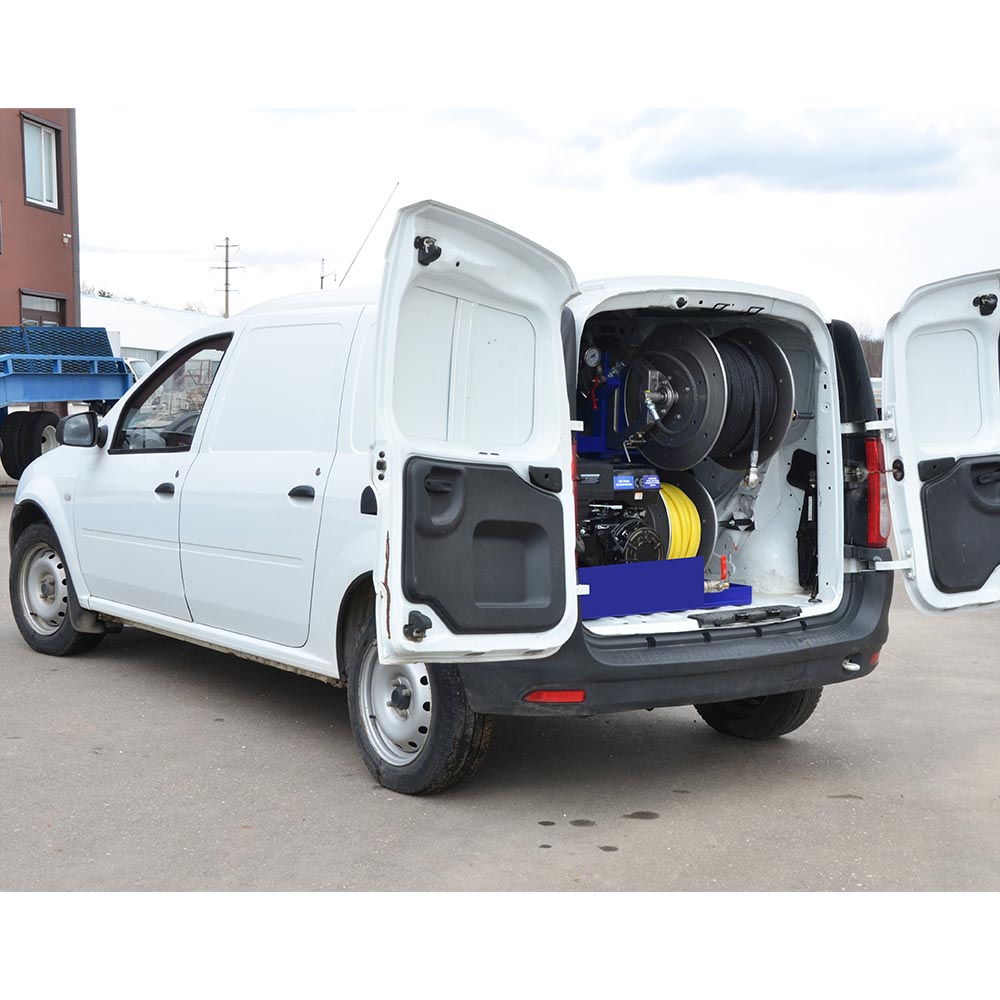

This sewer flusher allows for fully making use of engine power to carry out efficient cleaning of pipelines. Due to the use of breakthrough Warthog slow rotation nozzles, the flusher is capable of cleaning sewers with a diameter of max. 200 mm. Due to an integrated water tank, the flusher can operate autonomously, and a number of mounted water tanks solely depends on your vehicle capacity. Also, the apparatus allows carrying out efficient cleaning of any surfaces, including in a multiple-operation mode. We perform a turnkey mounting on any chassis chosen by the customer – from a trailer to a van, including special-purpose vehicles.
Features:
Upon request, standard and rotary nozzles with a preset location and number of holes.
Standard delivery set includes a reel for 90-meter hose.
Standard delivery set includes 90-meter high-pressure hose.
Special high-pressure hoses have a nominal bore of 12 mm, which allows for use of longer hoses without any substantial pressure decrease.
Shutdown gauges when the apparatus is out of water in the tank or oil in the engine.
We recommend that you use booster pumps when operating autonomously from a vessel, pond
Pipe cleaning nozzles of any configuration (standard, rotary, customized)
Flat, spot and rotary nozzles for surfaces
Tips, hoses, flexible high-pressure lance for cleaning of pipes and heat exchanger tubes
Reels for high-pressure hoses (convenient for pipe cleaning)
Water tanks with a volume of 200 – 1,000 litres
Motor pumps, booster pumps and stations
Special clothes
Additional filtration systems
Warranties:
2 years. For engines Honda, Briggs&Stratton – 3 years
Warranty and post warranty servicing
Video
Basic configurations
Poseidon B15S-150-26-L-Th93-Reel-500
High pressure HOT water cleaner POSEIDON on Skid frame (Lifan 15hp, pump Annovi Reverberi (Italy), integrated diesel hot water boiler 93kW (Italy), generator 3.5kW/220V, fixed manual hose reel, 10mm x 90m HP hose, 2 pipe cleaning nozzles, 19mm х 25m LP hose on reel, 500-litre water tank)
