JM-2512 water jetting unit from General Pipe Cleaners (USA)

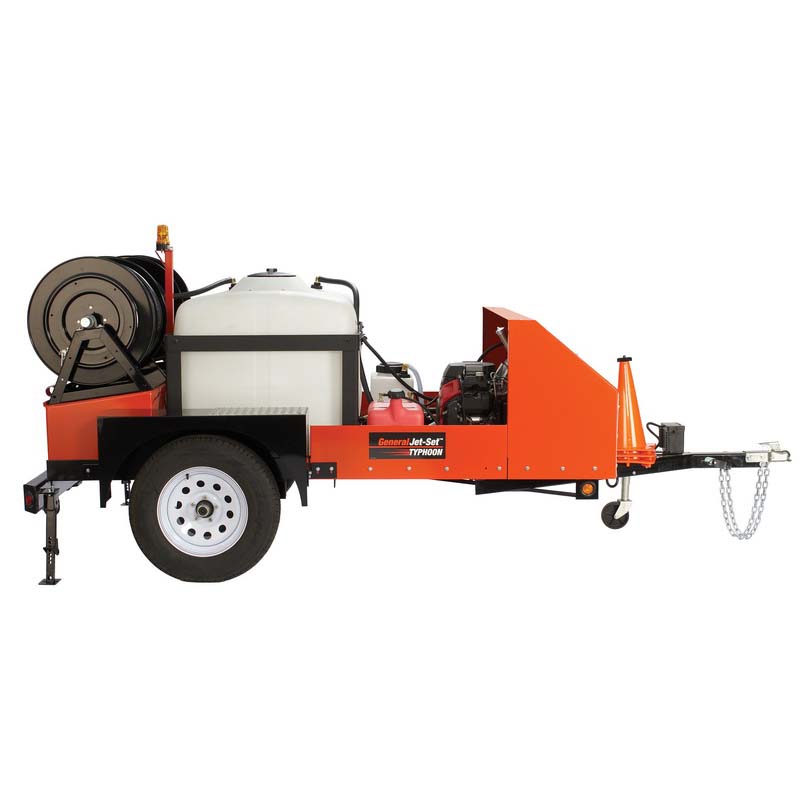

Sewer flusher on trailer, Honda, 690 hp, 176 bar, 50 l/min (General Pipe Cleaners, USA)
Sewer flusher on trailer, Honda, 690 hp, 176 bar, 50 l/min (General Pipe Cleaners, USA)

High-pressure sewer flusher available in two delivery sets: on a car trailer or frame-mounted. The frame-mounted option assumes allocation in a vehicle truck of Gazelle type or another vehicle with a minimum load capacity of 1,400 kg, while the trailer-mounted option can be towed by any vehicle as it is equipped with own electrical brakes.

“Vibra-Pulse” system, anti-freezing system, pump overheat protection, special inlet filter make this equipment the best choice for water and sewage services, contractors, industrial enterprises operating sewages.

Contracted price In stock

Delivery worldwide.
Add to basket
Consultation
Send order

Technical details:

Pressure, atm176
Performance, l/min50
EngineHonda 690 hp, with electro start, gearbox and automatic shut down system at low oil pressure
Maximum length of hose, m122 (DN 13mm)
Tank volume, l757
High pressure hose reelWith electrodrive (from generator), brake and stopper, adjustable speed, 122-meter hose (DN 13 mm)
Feeding hose reelManual, with brake and stopper, 45-meter hose.
Dimensions, mm3880х2080х1650 – on trailer 2790х1730х1520 – on frame
Weight, kg842 kg – 1662 kg – on trailer 504 kg – 1364 kg - on frame

Description:

Features:

  • Anti-freezing system.
  • HP hose reel electrodrive with adjustable speed
  • Adjustable winding speed of HP hose for more efficient operation
  • Vibra-Pulse system decreases friction between the hose and the pipe surface and allows passing the pipe turns.
  • Standard delivery set includes 3 special nozzles (JN-HD-150).
  • Upon request, rotary and chain nozzles.
  • Additionally – Injector pump for pumping out mud.
  • Retractable guide to conveniently feed a hose into the well.
  • High-pressure hoses have a nominal bore of max. 13 mm, which allows for use of longer hoses without any substantial pressure decrease.
  • Motohour counter.
  • On a trailer – electrical brakes, annunciator lamp, rear retractable supports, safety cones.
  • Upon request, equipping the trailer with a locking top part.
  • Vehicle logbook issued by the Central Board of Customs and Excise for a special sewer flushing trailer made in the USA.
  • Series JH hoses from General Pipe Cleaners have a smaller weight and decreased friction module, which allows substantially extend the maximum distance of cleaning as compared with standard rubber hoses.

Warranties:

  • 2-year warranty for operation in any conditions.

Video

Technical details:

Pressure, atm176
Performance, l/min50
EngineHonda 690 hp, with electro start, gearbox and automatic shut down system at low oil pressure
Maximum length of hose, m122 (DN 13mm)
Tank volume, l757
High pressure hose reelWith electrodrive (from generator), brake and stopper, adjustable speed, 122-meter hose (DN 13 mm)
Feeding hose reelManual, with brake and stopper, 45-meter hose.
Dimensions, mm3880х2080х1650 – on trailer 2790х1730х1520 – on frame
Weight, kg842 kg – 1662 kg – on trailer 504 kg – 1364 kg - on frame
