Poseidon apparatus series, 30 kW (380 V), 800-1,000 bar, 15-20 l/min

Technical details:

Water supply	Technical water, up to 60 °С (up to 45°С is recommended)
Working pressure, bar	800	1000
Pressure adjustment	Jet bore (basic) or high pressure regulator (option)
Water flow, l/min	20	15
High pressure pump	Three-plunger, crank-and-rod UDOR (Italy)

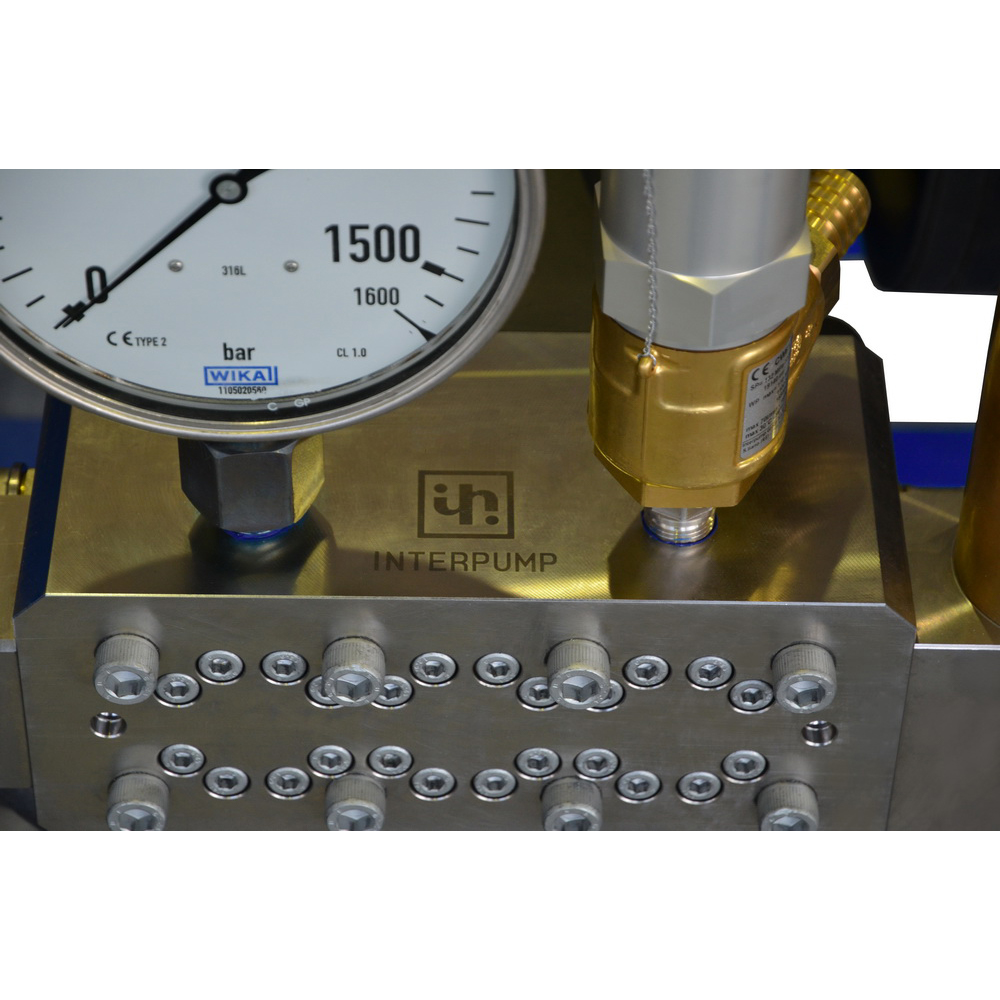

High pressure pump protection	Dry running protection, overpressure safety valve
Type of high pressure pump drive	Belt-drive configuration with fencing
Motor	Asynchronous electromotor, explosive-proof design is available. Power – 30 kW (380 V, 50 Hz).
Motor control	Magnetic starter, phase control, current overload protection, light indication
Design	Mobile (4-heavy duty swivel castor dolly)
Weight	340 kg
Dimensions	1130 х 750 х 840 mm
Warranty	1 year, extended warranty – 2 years

A manufacturer reserves the right to introduce any changes to an item design including to remove gauges, elements and make any other changes that do not affect parameters and warranty term of the item.

Description:

A high pressure apparatus combining best performance features with compact size allows to fulfill a wide range of tasks speedily and reliably. The professional high pressure pump and motor equipped with overload protection increase cleaning efficiency as well as operation reliability. “Poseidon” high pressure cleaning systems represent affordable and modern solution of problems associated with cleaning of various kinds of contaminations. The apparatus is intended for cleaning of house pipes, drains, downpipes, external surfaces, vehicles and waterjet cleaning of surfaces.

Features:

• Ergonomic design.
• Swivel castors to move around a machine shop.
• Low-speed high pressure pump (750 rpm).
• Pump, high pressure fittings and accessories from Italy, Germany.
• Standard set includes pressure safety valve and high pressure pump dry running gauge.
• Primary filter with washable cartridge.
• Electrical control unit utilizing components from Schneider Electric or Siemens.
• As an exclusive design of the given series we offer apparatus fitted with pump Speck (Germany) featuring high pressure pump synchronous cog-belt drive.

Authorization from a manufacturer of pumps UDOR (Italy)

Accessories:

• Foot pedals
• Jet guns
• tJets of any configuration (simple, rotating and customized) to clean pipes
• Flat, spot and rotating jets for surfaces
• Lance tubes, high pressure lances for cleaning of heat exchangers
• Plastic tank with a capacity of 200 – 1,000 l
• Protective overalls from TST (Sweden), Turtleskin (the US)
• Additional filtration systems
• Task-specific engineering solutions

Warranties:

• Basic warranty — 1 year, extended warranty – 2 years.
• Warranty and after-warranty servicing and repair

A manufacturer reserves the right to introduce any changes to an item design including to remove gauges, elements and make any other changes that do not affect parameters and warranty term of the item.
