E15-500-17-1Ex (ВНА-500-17 1Ex) explosion-proof hydrodynamic apparatus, 500 bar, 17 l/min

Poseidon E15-500-17-1Ex apparatus, 500 bar, 17 l/min
Poseidon E15-500-17-1Ex apparatus, 500 bar, 17 l/min

Manufacturer: Z-Techno (Russia)

“Poseidon” high pressure equipment marked with 1Ex letter are designed to be applied in explosion-hazard areas as provided by their explosion-protection marking 1Ex d IIB T4 Gb / II Gc T* (T* – temperature class depending on ambient temperature) and ГОСТ 30852.13-2002, ГОСТ IEC 60079- 14-2011, ГОСТ 31441.1-2011, which is verified by certificate of conformity to the Customs Union technical requirements ТР ТС 012/2011.

Protection against explosion is ensured by compliance of equipment with requirements specified in ГОСТ 30852.0-2002, ГОСТ 30852.1- 2002, ГОСТ Р МЭК 60079-0-2011, ГОСТ IEC 60079-1-2011, ГОСТ 31441.1-2011, ТР ТС 2011. Inter alia, for safe operation in explosion-hazard areas the equipment are mandatorily completed with the following components:

  • Explosion-proof asynchronous electromotor with 1 Ex d IIB T4 Х or 1Ex d IIС T4 Gb explosion-protection marking
  • Explosion-proof starter with 1Ex d IIB+Н2 T4…Т6 Gb explosion-protection marking
  • Explosion-proof connection boxes with 1Ex d IIC T6 explosion-protection marking
  • Explosion-proof socket and plug with 1Ex d IIC T6/Т5 Gb explosion-protection marking (additional option)
  • Armored explosion-proof cable.

Contracted price In stock

Delivery worldwide.
Add to basket
Consultation
Send order

Technical details:

Water supplyTechnical water, 60 °С max. (45°С max. is recommended)*
Working pressure50-500 bar
Pressure adjustmentAvailable, fine (regulator valve, By-pass system)
Water flow17 l/min

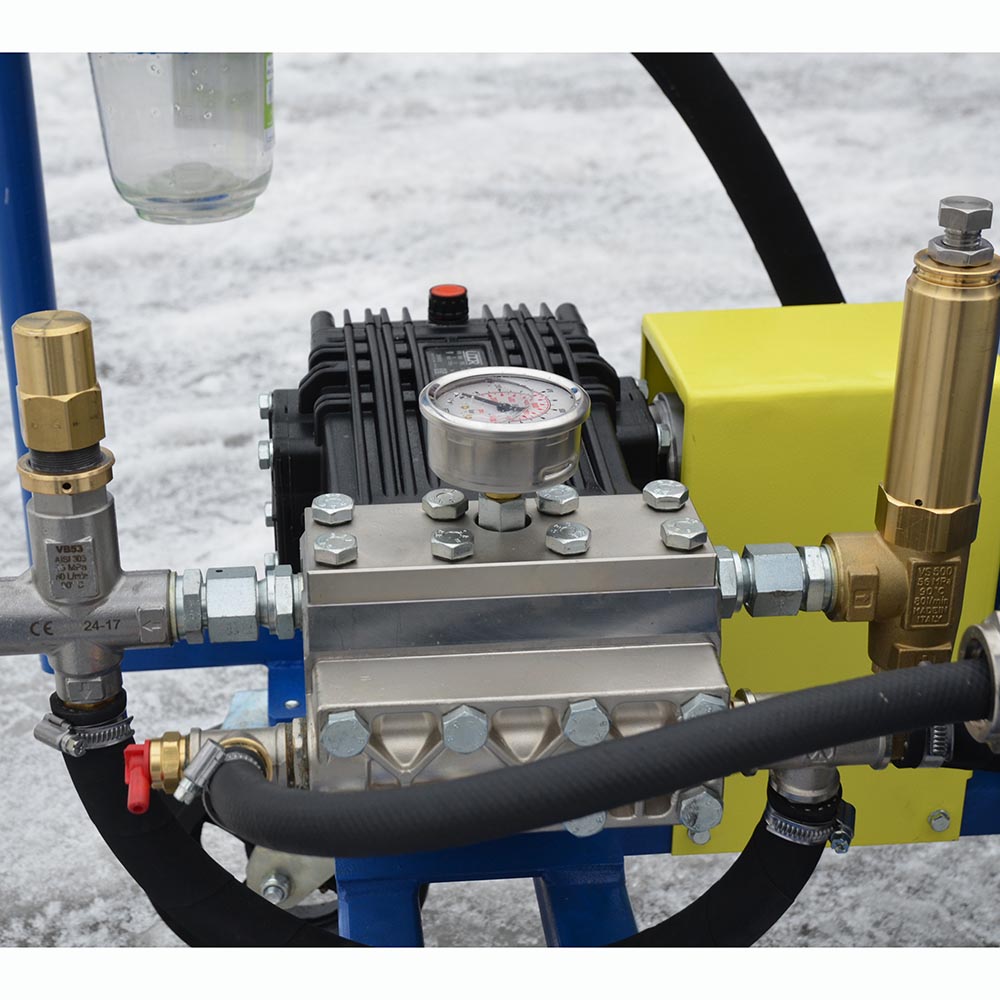

High pressure pumpThree-plunger, crank-and-rod type, with stoneware plungers from UDOR (Italy)
Type of high pressure pump driveVia flexible coupling
High pressure pump protectionOvertemperature protection heat gauge, pump dry running protection, high pressure safety valve
MotorExplosion-proof electromotor with 1 Ex d IIB T4 Х или 1Ex d IIС T4 Gb explosion-protection marking
Motor power15 kW (380 V, 50 Hz)
Motor protectionAgainst current overload
Motor controlExplosion-proof starter, plug and socket with 1Ex d IIC T6/Т5 Gb explosion-protection marking. Armored power cable.
Explosion-protection marking1Ex d IIB T4 Gb / II Gc T*, where Т* - temperature class
DesignMobile (4-heavy duty swivel castor dolly with brakes)
Weight197 kg
Dimensions1140х635х890 mm
Warranty1 year
*- can be operated along with water heating module, for washing with hot water.

Description:

A high pressure apparatus combining best performance features with compact size allows to fulfill a wide range of tasks speedily and reliably.
The professional high pressure pump and motor equipped with overload protection increase cleaning efficiency as well as operation reliability.
“Poseidon” high pressure cleaning systems represent affordable and modern solution of problems associated with cleaning of various kinds of contaminations. The apparatus is intended for cleaning of house pipes, drains, downpipes, external surfaces, vehicles and waterjet cleaning of surfaces.

Features:

Authorization from pump manufacturer
UDOR (Italy)
  • Explosion-proof high pressure apparatus “Poseidon” with 1Ex d IIB T4 Gb / II Gc T explosion-protection marking.
  • Ergonomic frame – takes one person to transport it.
  • Heavy-duty wheels with brake for ease of moving around.

Accessories:

  • Water-and-sandblasting equipment
  • Injection pump for piping mud out
  • Foot pedals
  • Jets of any configuration (simple, rotary and customized) to clean pipes
  • Flat, spot and rotary jets for surfaces
  • Lance tubes, flexible lances, high pressure hoses for cleaning of pipes and exchange heater tubes
  • Reels for high pressure hoses (convenient for cleaning of pipes)
  • 200 – 1,000 litre water tanks
  • Booster pumps
  • Overalls
  • Additional filtration systems

Warranties:

  • Warranty – 1 year.
  • Warranty and after warranty servicing, repair.

Video

Basic configurations

E15-500-17-1Ex-Gun

АВД Poseidon (сертифицированное взрывозащищенное исполнение с маркировкой взрывозащиты 1Ex d IIB T4 Gb / II Gc T, насос UDOR (ИТАЛИЯ) 500бар, 17л/мин, шланг прох. 10мм х 15м, пистолет, 1 форс.для поверхностей)

Working weight, kg

193

Contracted price

Technical details:

Water supplyTechnical water, 60 °С max. (45°С max. is recommended)*
Working pressure50-500 bar
Pressure adjustmentAvailable, fine (regulator valve, By-pass system)
Water flow17 l/min
High pressure pumpThree-plunger, crank-and-rod type, with stoneware plungers from UDOR (Italy)
Type of high pressure pump driveVia flexible coupling
High pressure pump protectionOvertemperature protection heat gauge, pump dry running protection, high pressure safety valve
MotorExplosion-proof electromotor with 1 Ex d IIB T4 Х или 1Ex d IIС T4 Gb explosion-protection marking
Motor power15 kW (380 V, 50 Hz)
Motor protectionAgainst current overload
Motor controlExplosion-proof starter, plug and socket with 1Ex d IIC T6/Т5 Gb explosion-protection marking. Armored power cable.
Explosion-protection marking1Ex d IIB T4 Gb / II Gc T*, where Т* - temperature class
DesignMobile (4-heavy duty swivel castor dolly with brakes)
Weight197 kg
Dimensions1140х635х890 mm
Warranty1 year
*- can be operated along with water heating module, for washing with hot water.
